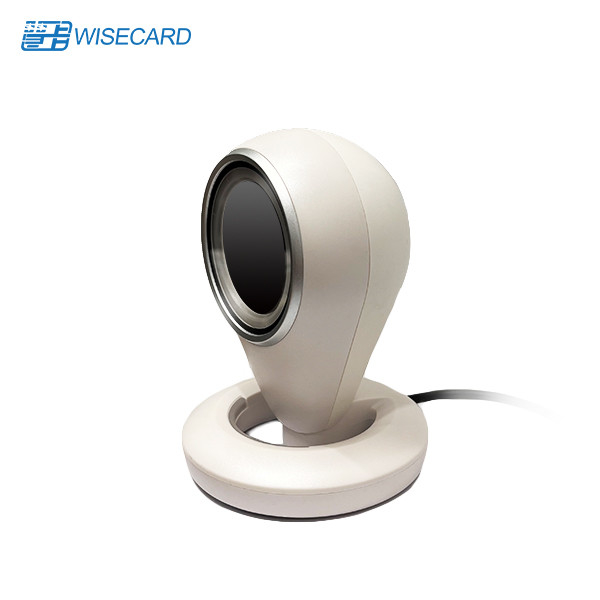

Factory High Quality Precision Desktop 1d 2d Qr Bar Code Scanners Scanning Supermarket Bar Code Scanner

تفاصيل المنتج

مكان المنشأ: الصين

اسم العلامة التجارية: Wisecard

إصدار الشهادات: SGS/ROHS/CE/ISO/CE RED

رقم الموديل: ماسح الباركود

شروط الدفع والشحن

الحد الأدنى لكمية: قابل للتفاوض

الأسعار: قابل للتفاوض

تفاصيل التغليف: packing details: standard export carton, can be customized. تفاصيل التعبئة: كرتون التصدير

وقت التسليم: 7 أيام عمل

شروط الدفع: تي / ت

القدرة على العرض: 100000 جهاز كمبيوتر في الأسبوع

احصل على أفضل سعر
اتصل الآن
تحديد
إبراز:

ماسح رموز الشريط في السوبر ماركت

,

ماسح رموز الشريط على سطح المكتب بدقة

,

1d 2d الماسح الضوئي للشفرة

مستشعر التصوير:
1280 * 1024 سيموس
دقة فك التشفير:
كود 39 4mil
توافق النظام:
لينكس ، أندرويد ، ويندوز إكس بي ، 7 ، 8 ، 10 ، ماك
كود متاح:
طباعة رموز 1D ، 2D على ورق أو فيلم أو شاشة
مقاوم للماء والغبار:
متوافق مع IP54
طاقة كهربائية شغالة:
5 فولت
واجهه المستخدم:
USB (محرك مجاني) ، منفذ تسلسلي
حجم التعبئة (L * W * H):
180 مم * 168 مم * 121 مم
مستشعر التصوير:
1280 * 1024 سيموس
دقة فك التشفير:
كود 39 4mil
توافق النظام:
لينكس ، أندرويد ، ويندوز إكس بي ، 7 ، 8 ، 10 ، ماك
كود متاح:
طباعة رموز 1D ، 2D على ورق أو فيلم أو شاشة
مقاوم للماء والغبار:
متوافق مع IP54
طاقة كهربائية شغالة:
5 فولت
واجهه المستخدم:
USB (محرك مجاني) ، منفذ تسلسلي
حجم التعبئة (L * W * H):
180 مم * 168 مم * 121 مم
وصف
Factory High Quality Precision Desktop 1d 2d Qr Bar Code Scanners Scanning Supermarket Bar Code Scanner

Factory High Quality Precision Desktop 1d 2d Qr Bar Code Scanners Scanning Supermarket Bar Code Scanner



Description Of Desktop Scanner

WCT-A3 is low power consumption design: from the main chip, sensor and lighting selection to circuit design, have done a special low power consumption processing, taking into account the excellent scanning performance, but also ensure the reliability of data transmission in various power supply conditions.



Feature Of Desktop Scanner

1. With 1280*1024 CMOS Imaging sensor, which can capture bigger and detailed image.

2. 1DCapacity: EAN-8,EAN-13,EAN-13 2 add-on, EAN-13 5 add-on,ISSN,ISBN,UPC-A,UPC-E,Code11,Code 32 and etc.

3. 5mil code39: 1-15cm

4. UPC-13mil: 1-33cm



Specification Of Desktop Scanner

Performance

Parameters

Picture Sensor 1280*1024 CMOS
Capacity 1D EAN-8,EAN-13,EAN-13 2 add-on, EAN-13 5 add-on,ISSN,ISBN,UPC-A,UPC-E,Code11,Code 32,Code 39,Code 93,Code 128,Codabar,Industrial 2 of 5,Interleaved 2 of 5,Matrix 2 of 5,GS1-128,GS1 DataBar(RSS14),GS1 DataBar Limited,GS1 DataBar Expanded
2D PDF417,MicroPDF417,MicroQR, Data Matrix,QR,Aztec
Depth of Field Tested Code Minimum Maximum
5mil code39 1cm 15cm
UPC-13mil 1cm 33cm
20 mil code39 1cm 40cm
20 mil QR Code 1cm 28cm
System Compatibility Linux,Android,Windows XP,7,8,10,MACOS
Decode Accuracy Code 39 4mil
Code Available 1D, 2D Codes printing on Paper or film or screen
Scan Rate 30 Fps
Scan Pattern Automatic induction continuous scan
Keyboard support American-English, French, Italian, German, Spanish, Japanese, Russian, Arabic, Irish, Polish, Dutch, Czech, Portuguese (Portuguese, Brazilian), Swedish, Turkish F, Turkish Q, Greek, Finnish, Belgian (French), British-English
Barcode language support Simplified Chinese (win system)
Invoice function Support( for China market only(win system)
Secondary development Not support
Barcode output editing support adding prefix and suffixes, hidden characters
Symbol Contrast 20%
Scanning Angle Horizontal : ±70° Vertical:±60° Rotated: ±360°

Human-

computer interaction

Indicator light Red & Blue indicator light
Buzzer Start Tips,Reading code tips

Environment

Parameters

Drop Design to withstand 1.5 M drops to concrete 3 times
Environmental Sealing IP54
Working Temperature -20-55℃
Conserve Temperature -20-60℃
Working Humidity 5-95% Non-Condensed
Conserve Humidity 5-95% Non-Condensed
Environment Light 0-70000LUX

Physical

Parameters

Net Weight 372g
Packing Weight 500g
Data line length 180CM(±3CM)
Host Size(L*W*H) 104.8*104.8*147mm
Packing Size(L*W*H) 180mm*168mm*121mm
Interface USB(Drive free), serial port
working voltage 5V

USB



Standby current 133mA/0.665W Serial port Standby current 357mA/1.785W
Working current 133mA/0.665w Working current 357mA/1.785W
Working current(Max) 175mA/0.875W Working current(Max) 358mA/1.79W




Application Of Smart POS Terminal

1. Retail

2. Restaurant& hospitality

3. Field services

4. Warehouse &manufacturing
